Saturday, January 07, 2012

Another Robot Dealie


I'm having too much fun with Arduino.

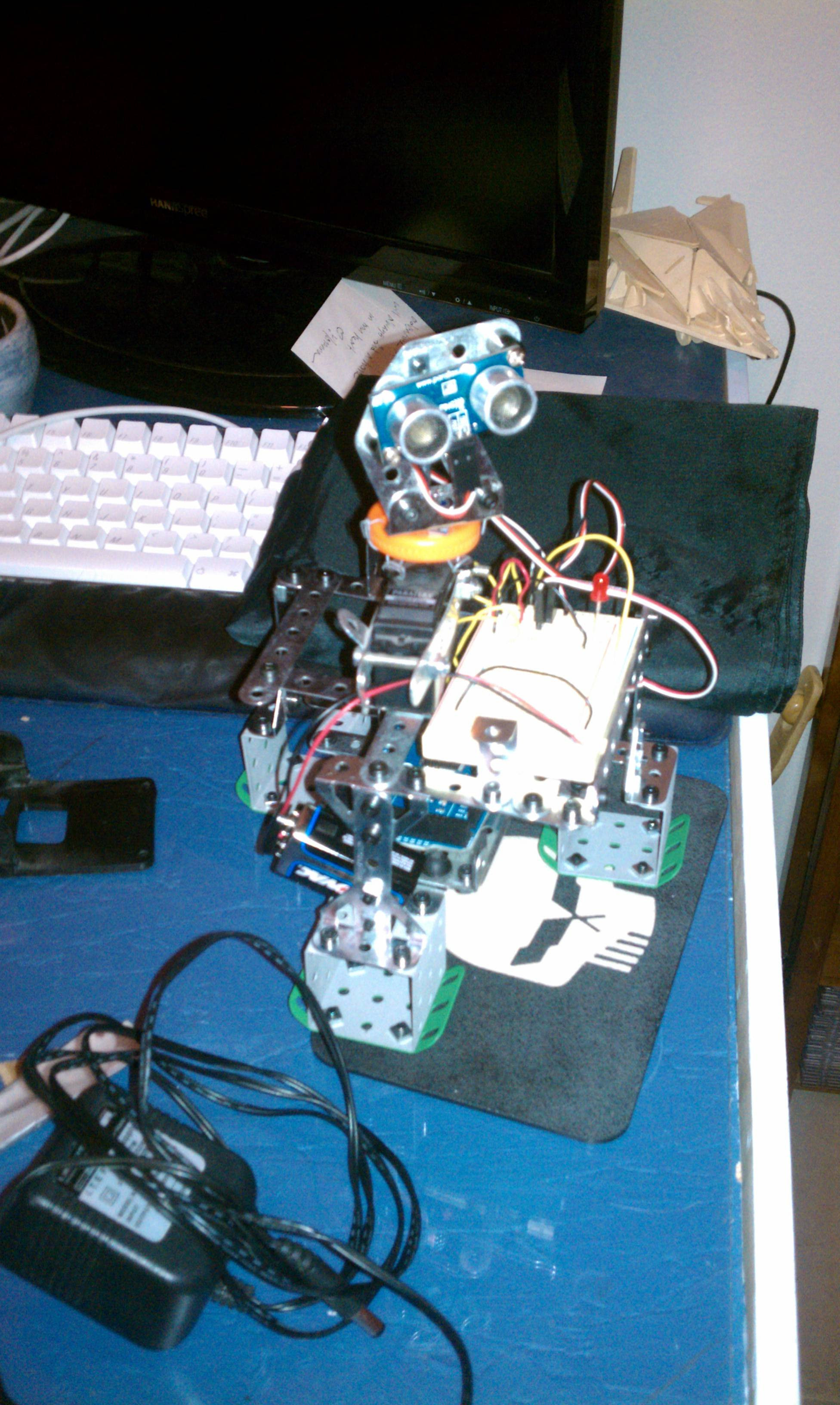

This little dude is pretty simplistic.  2 continuous rotation servos in the back control the rear wheels independently.  Another standard servo rotates the Ping sensor on top to check for collisions.  If an object is found in front, he'll look around for another way out.  If there's no way out, he'll back up and check again.  I also added a bright white LED up front for fun.

I built it using one of those Radio Shack project enclosures and a bunch of Erector Set parts.  I'll get some video of him driving around soon.

The catbot would've been fun, but I had a hard time finding an electric water gun that didn't leak.  I didn't want to risk burning out my Arduino, so I moved onto the next project.  I'll probably use this as a base for my projects for a while.  I also ordered some tank tracks and a dual-motor gearbox, so the next robot should be a bit quicker than this little guy :]

Monday, January 02, 2012

Arduino Catbot


We have 3 cats and 3 dogs in our house.  Whenever I go to bed, I can hear the little monsters walking around on the counter.  This drives me crazy and I wanted to find a solution.  What better way to keep cats off the counter than an Arduino?

First off, I know you can buy something to easily solve this problem.  That's not nearly as fun though.

To start, I picked up the Parallax Ping Sensor.  This thing sends out a sonar wave to detect any object in front of it.  It then returns back a measurement that I can convert into inches.  I mounted that on top of a 180 degree servo that I spin around.  To save power, I only trigger it all when my motion detector is set off.  Since these things will sit on top of the counter, they should only trigger when a cat jumps up.

The plan is to shoot a water gun at the intruder (cat) until it is gone.  I'll be mounting the water gun on top of the servo and ping sensor, so it will always be pointed in the direction of the intruder.

Once the final design is complete, I'll build 3 or 4 of these things and leave them around the counters.  That should teach them not to jump up there.  Long term plan is to network them and have them signal eachother so they can work in unison.  I think I can keep this simple and use some kind of IR signal.  Once that's all working, maybe I can even put one on wheels and have it patrol the kitchen.

So much to do, so little time.
