Arduino + Electret Microphone

Last week, I ordered a whole bunch of Electret microphones from Sparkfun.  I thought I could add some cool noise sensors around the rover I've been building.  They come in and I start researching how to use them when I realize that I've made quite the mistake.  These little microphones are way too weak for the Arduino to read anything from.  What I should have purchased was this breakout board since it has a 100x opamp that amplifies the signal for the Arduino.  The damage was done though and I wanted to see if there was anything I could do to make these things work.

After much research online and toying around, I found this circuit and tried it to see if it would work.

Here it is on the breadboard:


When I first set it up, it didn't work and I couldn't figure out why.  I then realized that I just didn't have power going to the board.  Nice and simple mistake.  After fixing that, it seemed to return some value of 850.  Trying a different microphone gave me a different start value.  I set up my program so that it would get the ambient noise average before it started so I didn't have to worry about setting a value for each microphone.  After I got that setup, I simply check if the sound is higher than the ambient noise and flash an LED if it is.  That all seemed to work, so I went ahead and created a more portable version of it for my little rover.


The 3 pins are Signal, +5v, Ground.

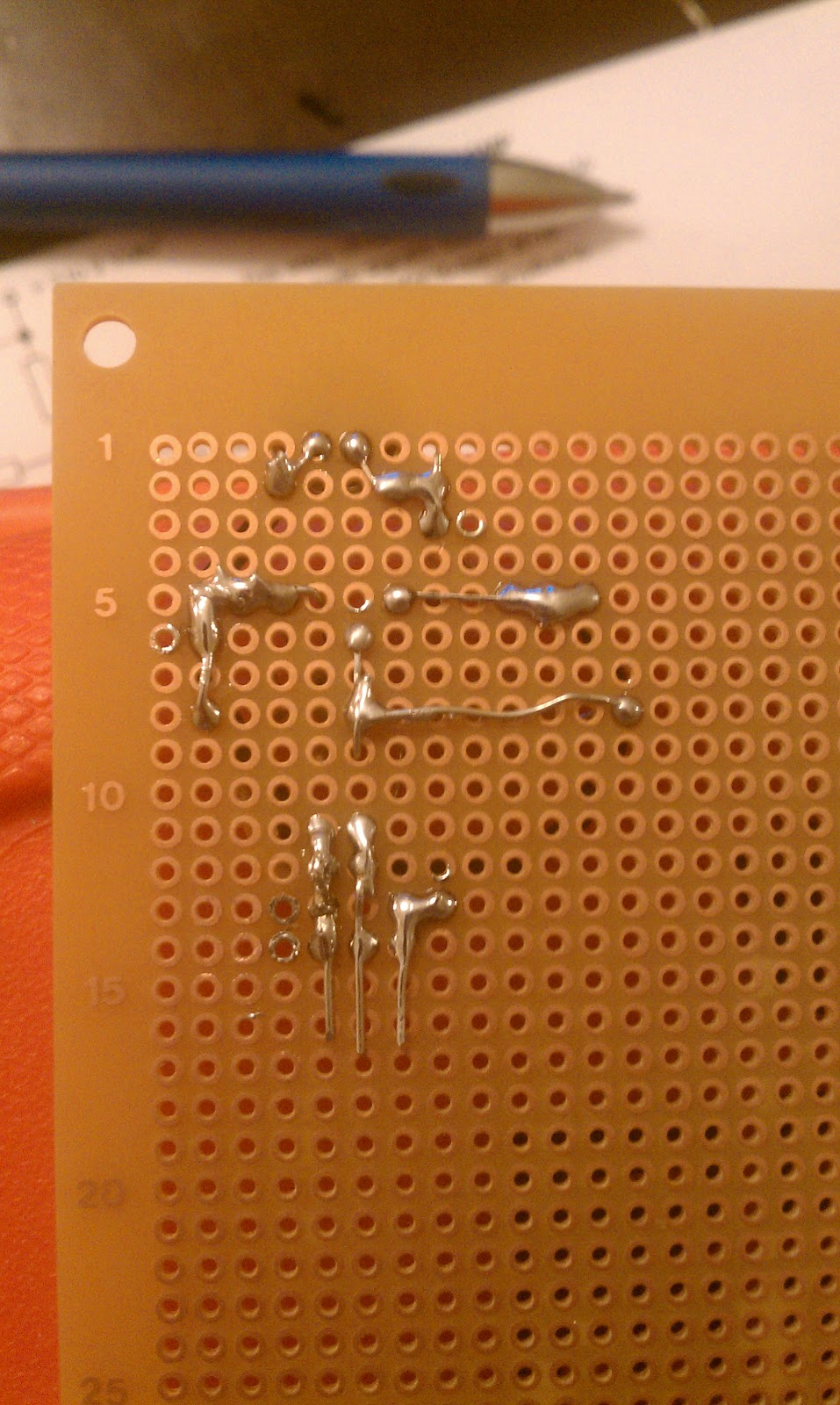

Once that was done (and tested to make sure it still worked (it did)), it was Dremel time.


Now you can see why I added 3 pins :]

All tested and working well.  Here's a little video that shows it in action.


http://www.youtube.com/watch?v=ZHyVWfwPMOs

I still don't think it's quite right.  It should have a much larger range than it does, but this will do for now.  I can toy with this until I find a better circuit to use or just order the breakout board that Sparkfun sells.
